AA-BOND F125 Fast Cure, Low Visc, 2 Part, Black Fiber Optic Connectors

Description

Technical Product Bulletin

FAST CURE BLACK EPOXY ADHESIVE FOR FIBER OPTIC APPLICATION

PRODUCT DESCRIPTION:

AA-BOND F125 is an 8 minute gelling epoxy recommended for use in fiber optic connectors, optical and industrial bonding applications.

AA-BOND F125 is Black, two parts system is easily mixed and used at room temperature. Fiber optic connectors can be polished in as little as 15 to 20 minutes for piston free assurance. The high bond strength of AA-BOND F125 to glass, plastics, ceramics, metals and masonry allows it to be used in a wide array of applications including lens bonding, connector backfills, construction, component assembly and maintenance repair.

AA-BOND F125 is low shrinkage epoxy, develops significant properties 1 hour after mixing. However, an extended cure of 4-6 hours at 25°C is required for fully matured bonds.

NOTE: AA-BOND F125 develops a high exothermic reaction. Use immediately after mixing. The exothermic reaction begins within 2 minutes after initiating the mixing step, so have everything ready before mixing.

PRODUCT PROPERTIES:

Color	Part A (Resin): Black Part B (Hardener): Clear to light yellow Mixed: Black
Components	2 components - requires mixing
Cure Type	Room Temperature or Heat cure
Benefits	· Fast Cure · Easy mixing
Substrates	Most metals, Ceramics, Glass and Etc.
Mix Ratio by weight	1:1 Resin to Hardener
Operating Temperature	–40°C (-40°F) to +100°C (212°F)
Typical Applications	Fiber optic assembly, multimode and single mode connectors, small potting and sealing applications

UNCURED PROPERTIES:

Mixed Viscosity @ 25 °C cps	9000 ±1000
Specific Gravity gm/cc	Mixed: 1.19
Reactive solids contents, %	100
Pot Life	5 minutes
Shelf life	1 year

CURE SCHEDULE:

24 hours	25°C (77°F)
1 hours	65°C (149°F)

CURED PROPERTIES:

Hardness, Shore D	81
Volume Resistivity ohm. cm	5.0 E+11
Lap Shear Strength alum to alum, PSI	2900 (24 hrs @ 25°C)
Dielectric strength, Kv/in	410

THERMAL PROPERTIES:

CTE, linear

33.3 µin/in-°F

@Temperature 68.0 °F

Glass Transition Temperature (Tg)

40°C (104 °F)

GENERAL INFORMATION:

For safe handling information on this product, consult the

Safety Data Sheet, (SDS).

HOW TO USE:

1. Carefully clean and dry all surfaces to be bonded.

2. Apply AA-BOND F125 completely mixed adhesive to the prepared surfaces, and gently press these surfaces together. Contact pressure is adequate for strong, reliable bonds; however, maintain contact until adhesive is completely cured.

3. Some separation of components is common during shipping and storage. For this reason, it is recommended that the contents of the shipping container be thoroughly mixed prior to use.

4. Some ingredients in this formulation provided may crystallize when subjected to low temperature storage. A gentle warming cycle of 52°C for 30 minutes prior to mixing components may be necessary. Crystallized epoxy components do not react as well as liquid components and should be re-dissolved prior to use for best results.

5. Allow the product to cure according to the cure schedule.

AVAILABILITY:

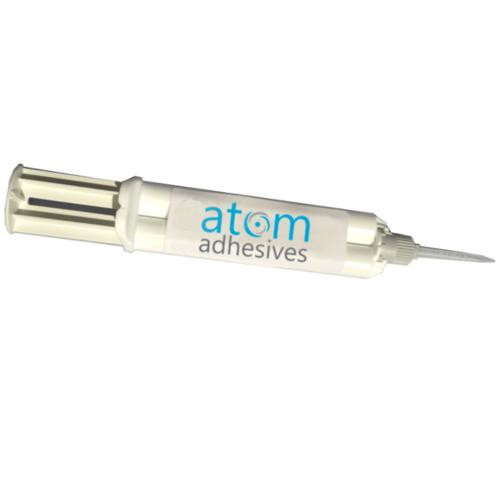

This epoxy can be supplied in many different packages.

Data Sheets: TDS | MSDS available upon request.
